SPL Director Mk2
Sound Performance Lab

SPL Director Mk2

D/A Converter & Preamplifier

Product Code:
Availability:
SPL Director Mk2
Call for Availability
₹379,800

Call +91 98843 04425 for availability

Analog inputs & outputs; XLR (balanced)
Maximum input & output gain
21.5 dBu
Input impedance
20 kΩ
Output impedance
75 Ω
Frequency range (-3 dB)
10 Hz – 100 kHz
THD +N (0 dBu, 10 Hz – 22 kHz))
0.005 %
Noise (A-weighted)
-96 dBu
Crosstalk (1 kHz)
-70 dB
Common mode rejection (1 kHz)
60 dB
Dynamic range
117 dB

Standard Headphones Output, 6.35 mm (1/4") TRS Jack
Wiring
Spitze = links, Ring = rechts, Schaft = GND
Source impedance
22 Ω
Noise (A-weighted, 600 Ω)
-85 dBu

Internal Linear Power Supply with Toroidal Transformer
Operating voltage for analog audio
+/- 15 V
Operating voltage for relays and LEDs
+ 12 V

Mains Power Supply
Mains voltage (selectable)
230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V
T 315 mA
Fuse for 115 V
T 630 mA
Power consumption
max. 10 W

Dimensions & Weight
W x H x D (width x height incl. feet x depth)
215 x 100 x 220 mm
8.46 x 3.58 x 8.66 inch
Unit weight
2.1 kg
4.63 lbs
Shipping weight (incl. packaging)
4 kg
8.82 lbs
Director Mk2
The director sets the tone.
The central unit of the HiFi system is the preamplifier. With remote source selection and volume control, tape monitor path, retro-look-VU-meters, premium DA-converter and the all superior VOLTAiR technology, the Director Mk2 caters for musical blockbusters.

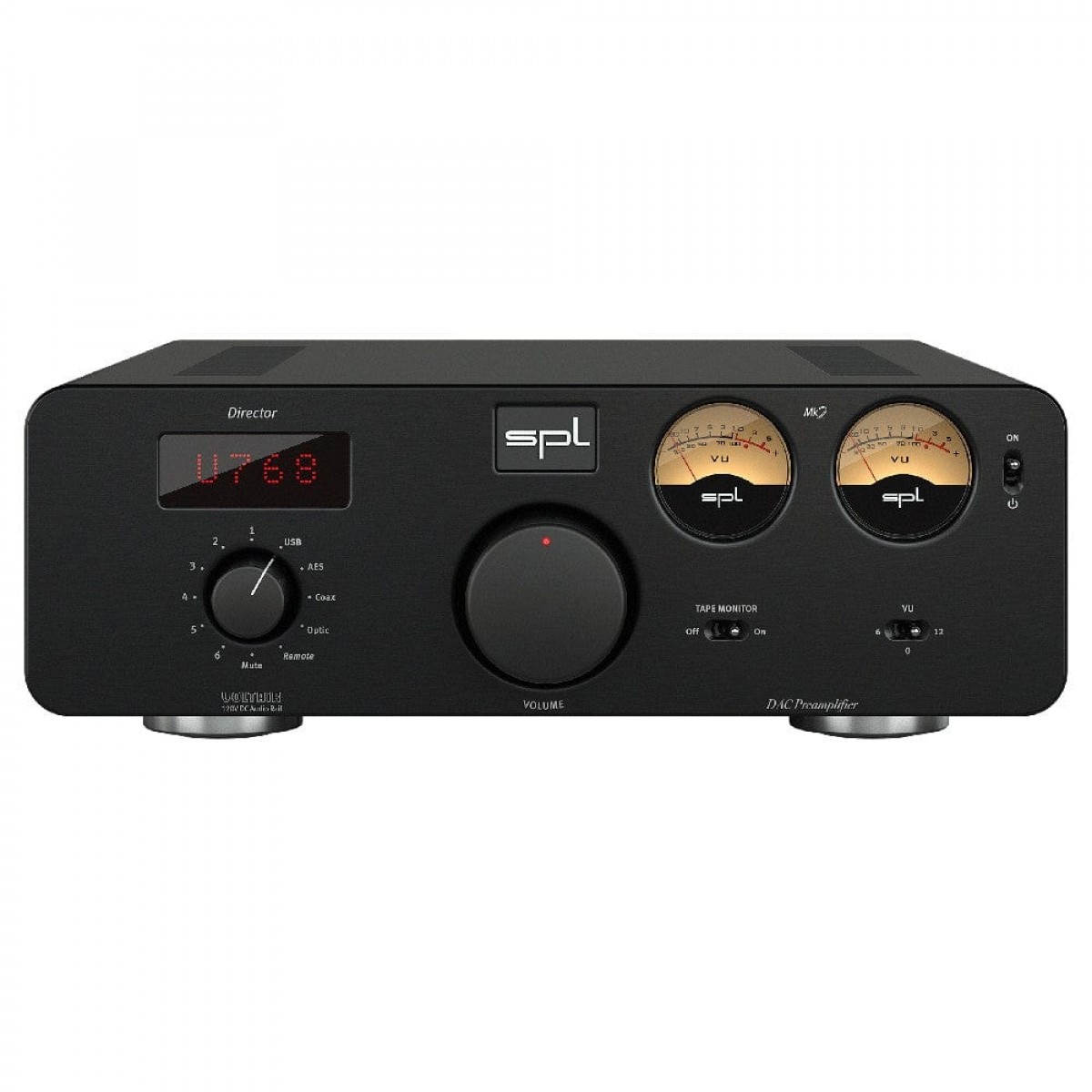

Milled from solid
The massive 45mm volume control knob milled from aluminum is a haptic highlight. Its mass together with the motorized Alps RK27 “Big Blue” potentiometer enhances the “spoon in the honey” feeling even further.
The red marker LED ensures good visibility of the volume parameter even in darkened environments.

Remote control
The volume control can be remotely controlled with any infrared remote control.
The Director Mk2 learns to communicate with it with the simple push of a button.

Source of joy
Up to ten (10!) stereo sources can be connected to the Director Mk2. Six of them are for analog and four for digital input signals.
The source selection is shown in the dot matrix LED display: IN 1 through IN 6 for the analog inputs.
AES, USB, COAX, OPTIC for the digital inputs, where the detected sample rate is displayed after about two seconds. For example U768 = USB input with 768 kHz sampling rate.
The source selection can also be operated remotely if the rotary switch is set to the “Remote” position

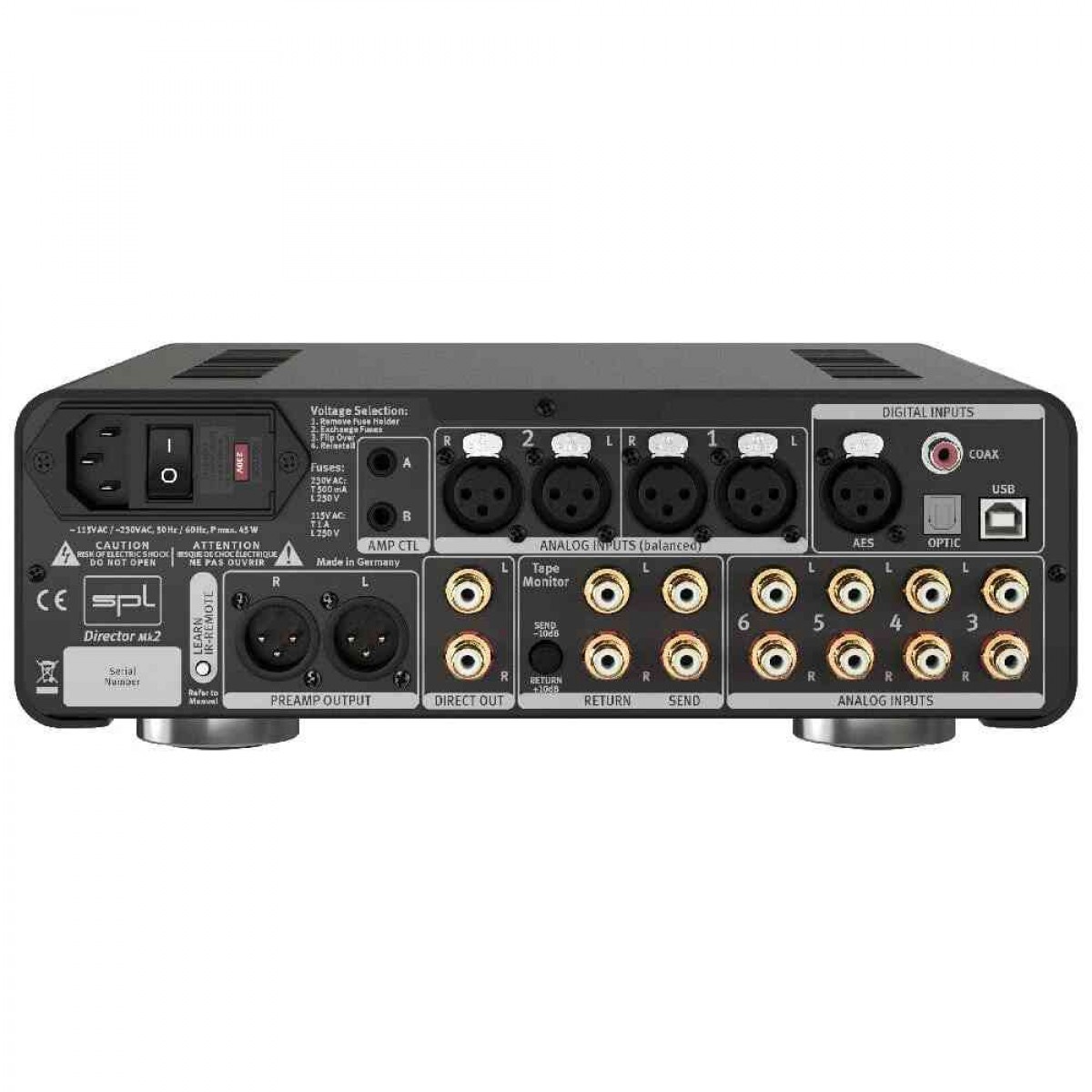

The Director Mk2 offers two pairs of balanced inputs with XLR connectors and four standard inputs with gold-plated RCA connectors.
On the digital side there are four additional inputs. PCM audio is received in S/P-DIF format via coaxial Cinch, optical Toslink and balanced XLR (AES). Both PCM audio and DSD audio can be converted via USB.

Well informed
The DAC automatically picks up the sampling rate and resolution of the digital playback source. No matter if a streamer, computer or CD player is connected. No further settings on the Director Mk2 are necessary.

The detected sampling rate is shown in the dot matrix LED display. For example, U768 is an acronym for the source “USB” with a sampling rate of 768 kHz.

The highly acclaimed AKM AK4493 SEQ VELVETSOUNDTM premium DAC chip is used as the converter chip in the digital/analog converter within the latest version of the SPL DAC “DAC768v2”, which thanks to its architecture reproduces the finest sound details. It impresses with even lower distortion characteristics and a wider dynamic range than its predecessor. It converts PCM audio with a resolution of 32 bits and a sampling rate of up to 768 kHz, which is equivalent to 16 times CD resolution. Direct Stream Digital is also supported up to a resolution of DSD4 or DSD256. The DAC768v2 features the newest version of the Spartan FPGA – Spartan 7. In contrast to the smaller SPL DAC “DAC768xs”, it not only offers an AES/EBU digital input, but also the new, optimized SPL SLP120 with VOLTAiR technology.

The analog output of the DAC chip must be filtered by a low pass filter. In contrast to all other DACs in the world, the low pass filters here are built using VOLTAiR technology, which provides a plus in dynamics and headroom and sound. The filter specially optimized for the new SPL DAC768v2 is called SLP120 (Super Low-Pass).
The DAC768v2 inside the Director Mk2 is equipped with the SLP120 – an analog “Super Low-Pass” filter with VOLTAiR technology.

SPL Audio Professional Fidelity
