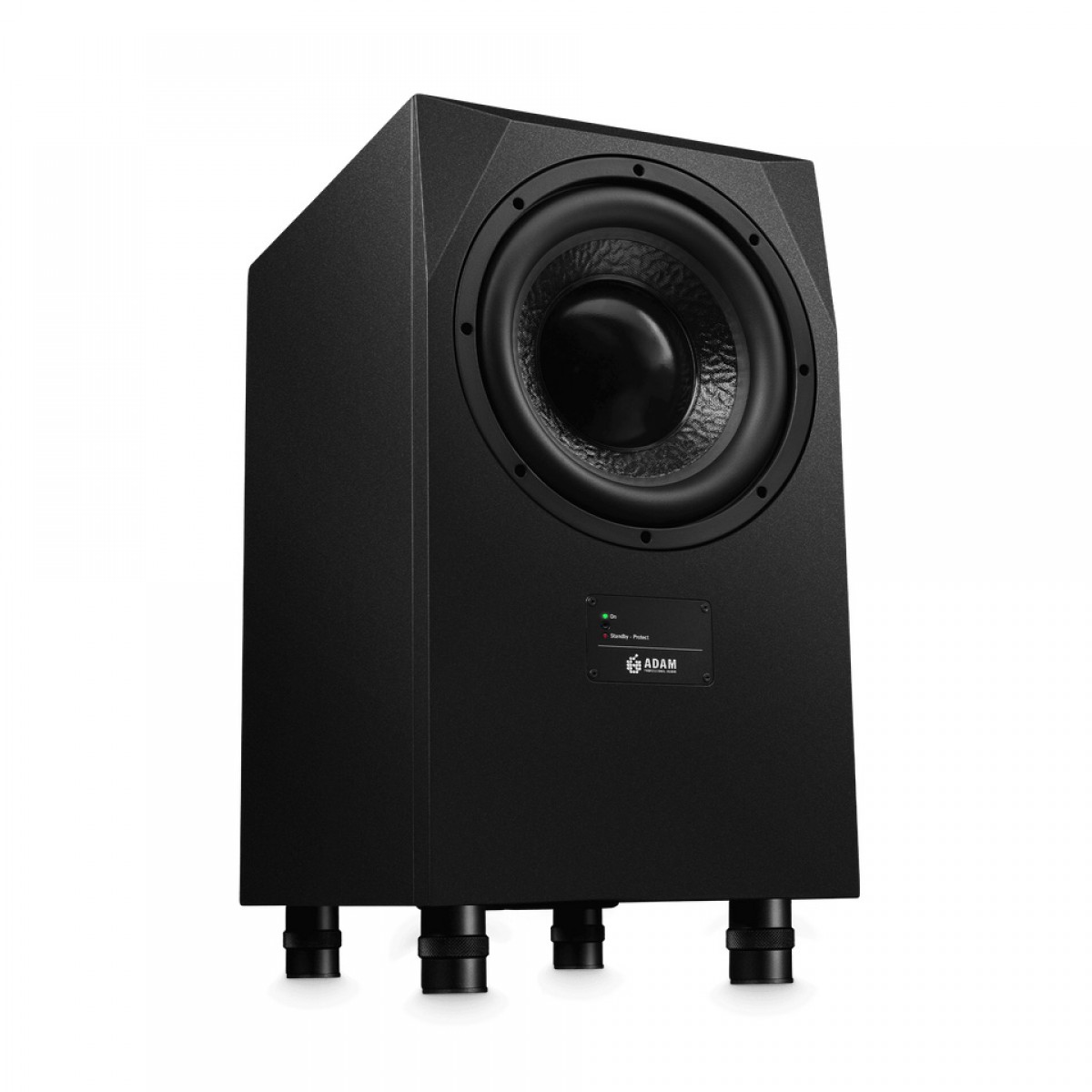

ADAM Audio Sub10 MK2 (Single)

The Sub10 Mk2 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 25Hz.

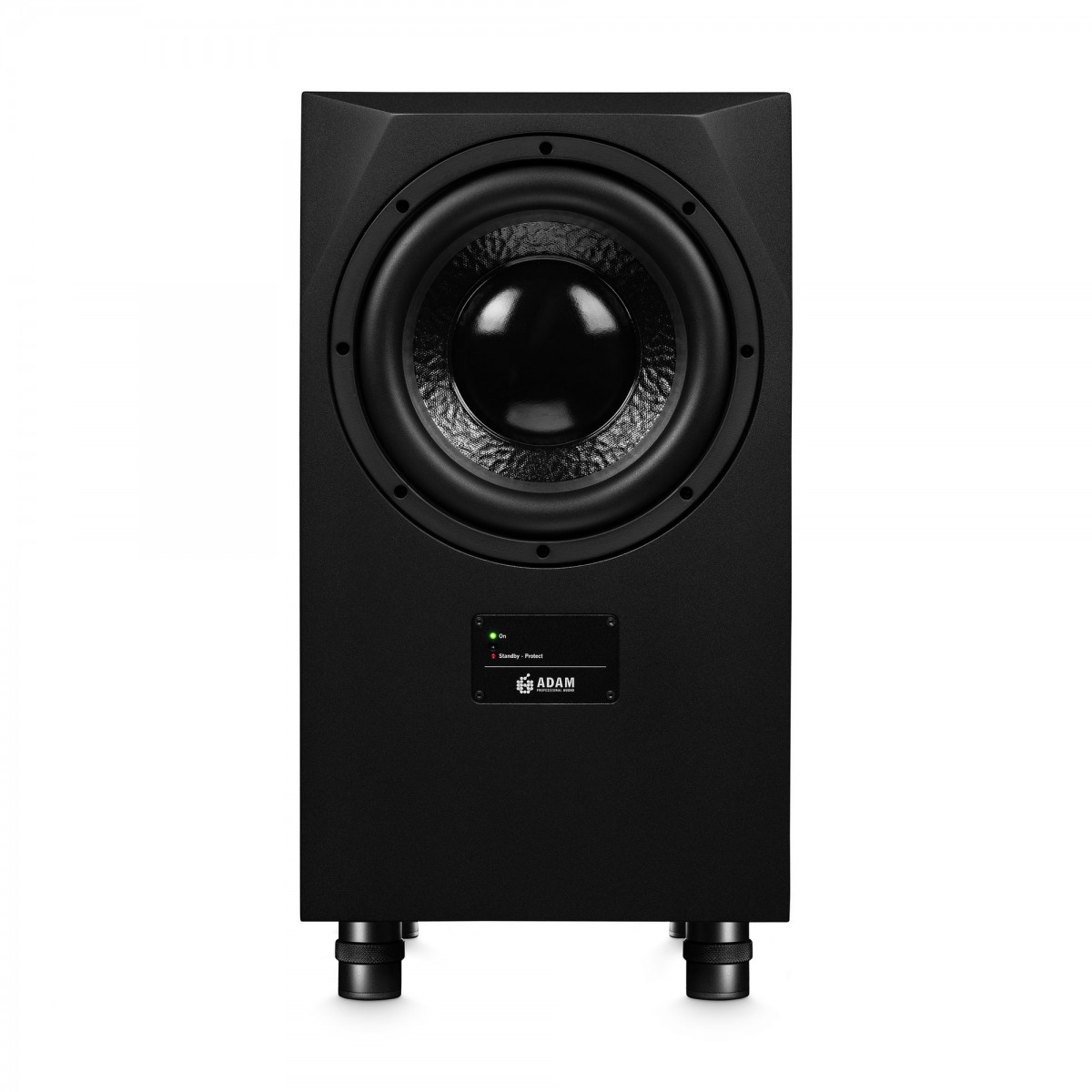

A sturdy special woofer with extended cone travel and a heavy-duty coil has been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub10 Mk2 subwoofer provides a precise combination of low cutoff frequency (-3 dB at 25Hz) and an undistorted high sound pressure level (113dB at 1m).

Specifications

Acoustics

Frequency Response

25 Hz – 150 Hz

THD > 60 Hz

≤1 %

Max. peak SPL at 1 m

≥113 dB

Crossover Frequencies

50 – 150 Hz

General Data

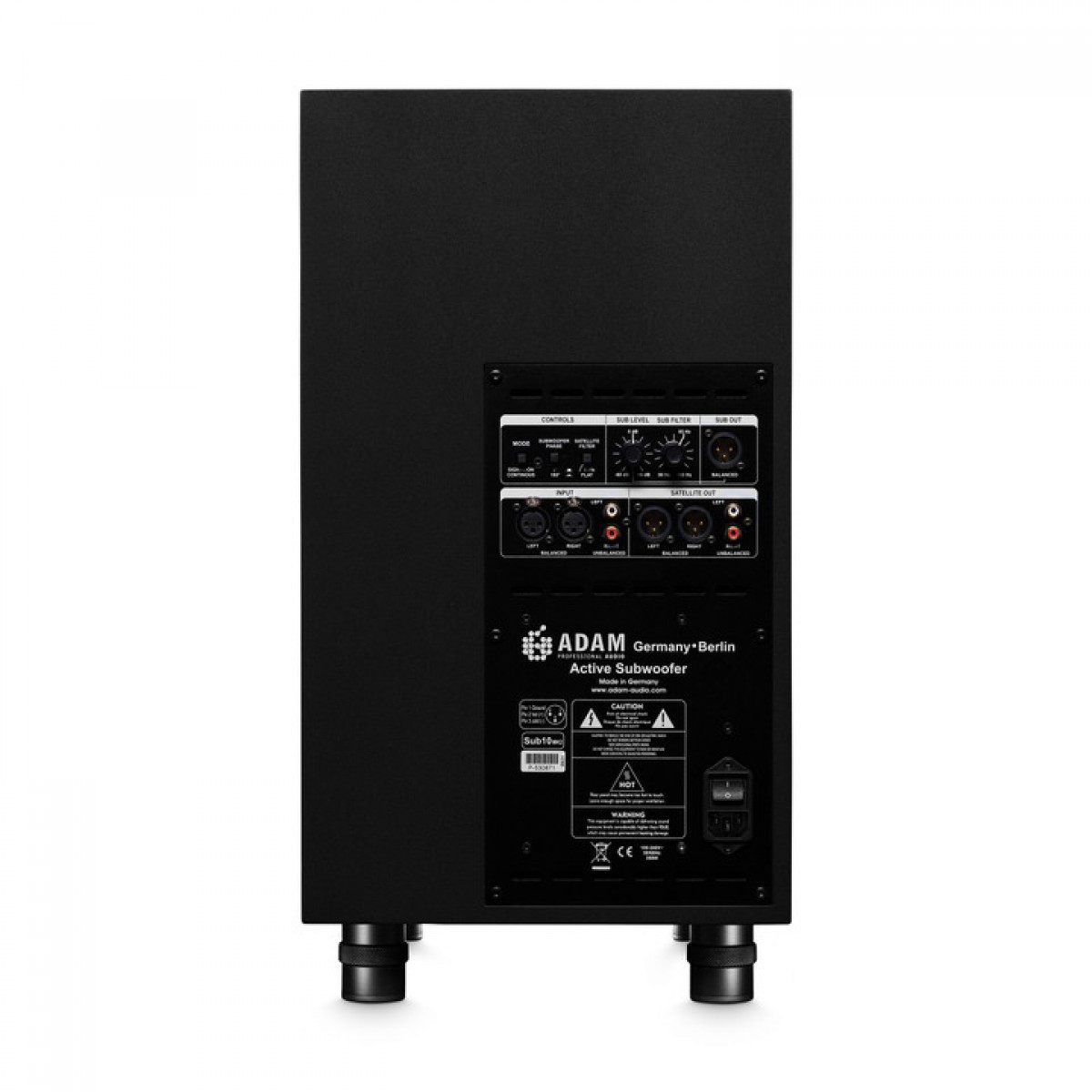

Panel

Rear

Weight

46.3 lb (21 kg)

Height x Width x Depth

22″ (560 mm) x 12″ (300 mm) x 15.5″ (400 mm)

Warranty

5 years (2 years warranty plus 3 years optional with product registration)

Delivery Contents

Power cord, manual
