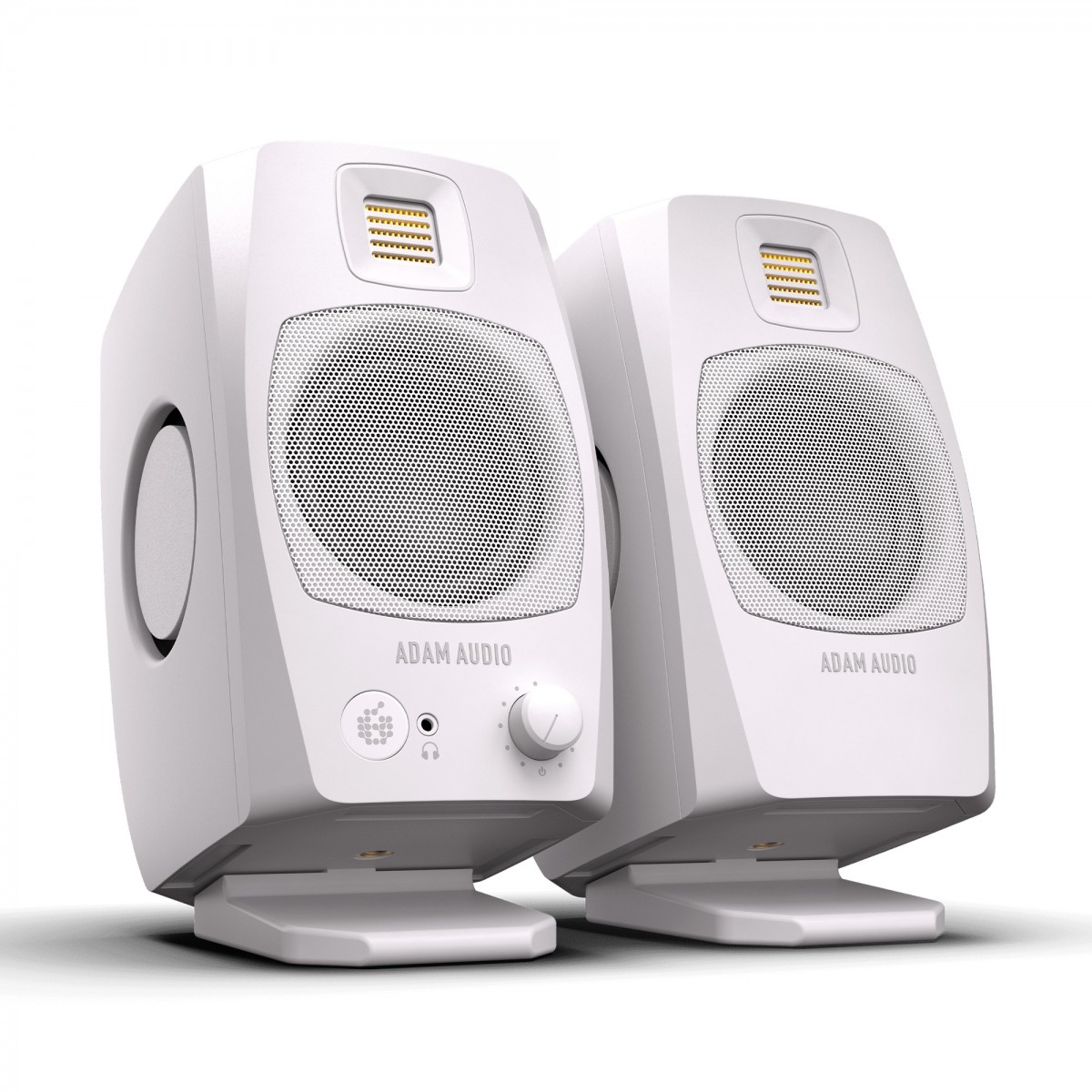

ADAM Audio D3V - White (Pair)

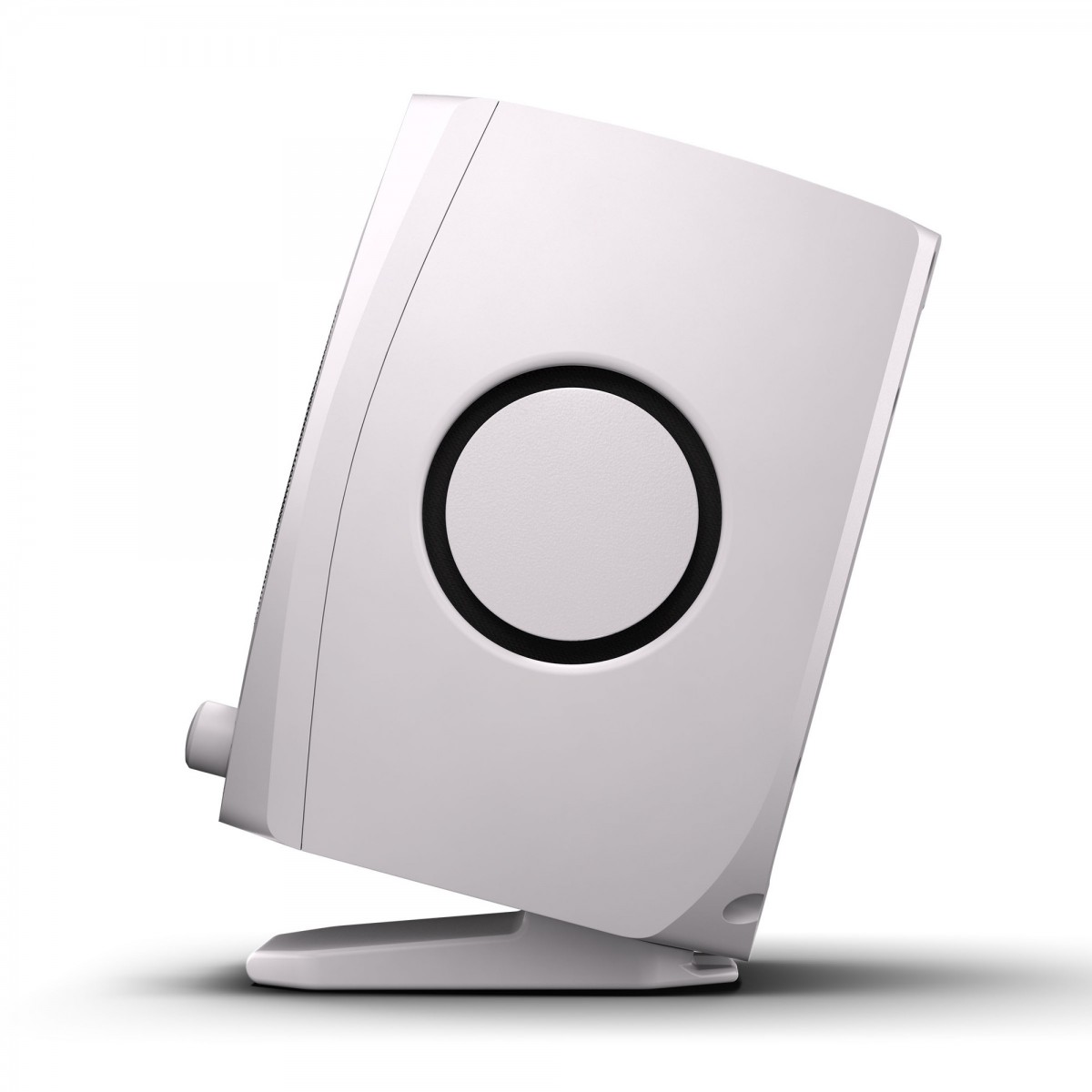

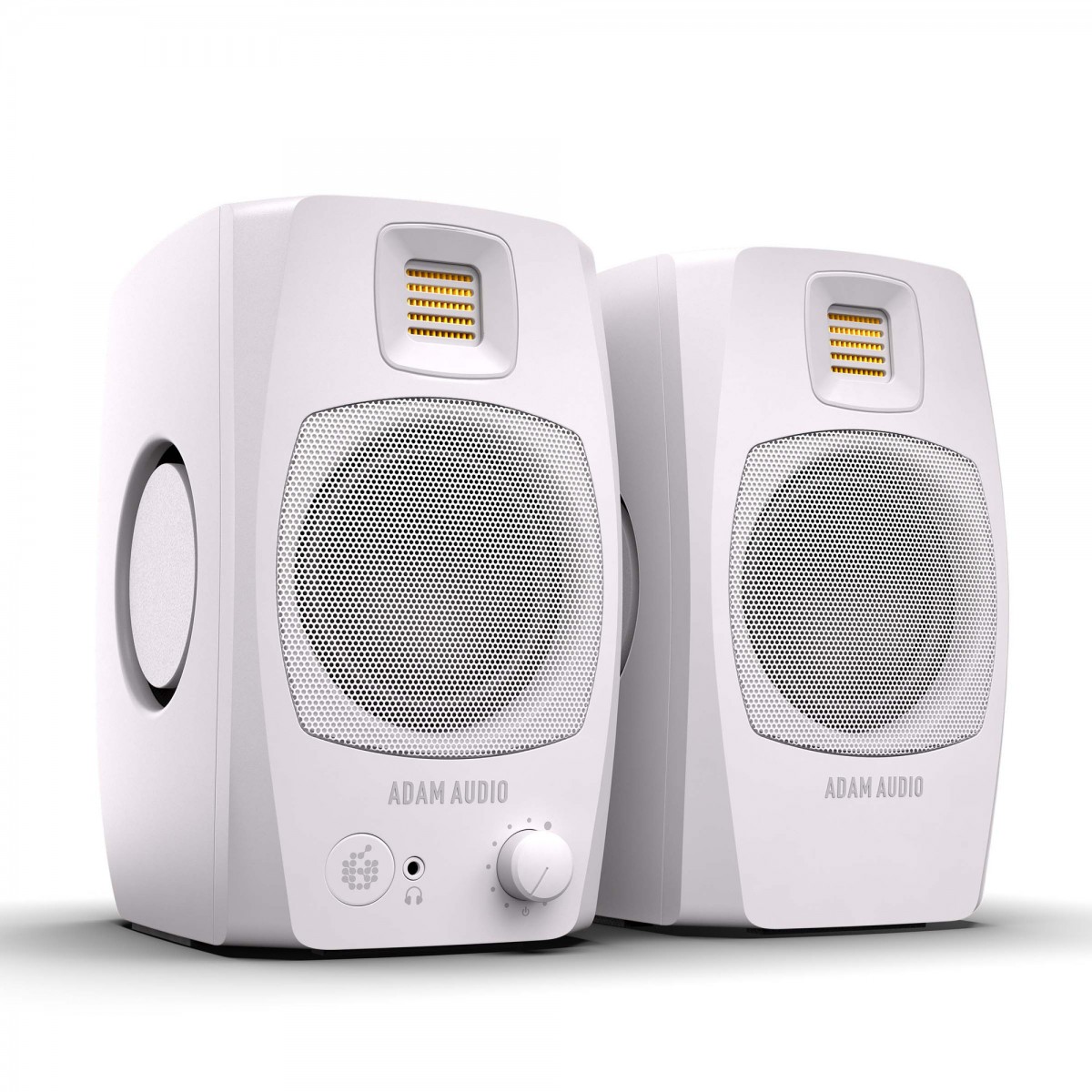

The D3V is a fully active desktop monitoring system that stays true to ADAM Audio’s industrial design heritage and features the iconic AMT tweeters. Each pair features 3.5” aluminum woofers and a ferrite magnet system, driven by an astonishing 240 W total system amplification. Dual-sided 3.5” passive radiators bolster bass frequencies and allow the D3V to extend down to 45 Hz.

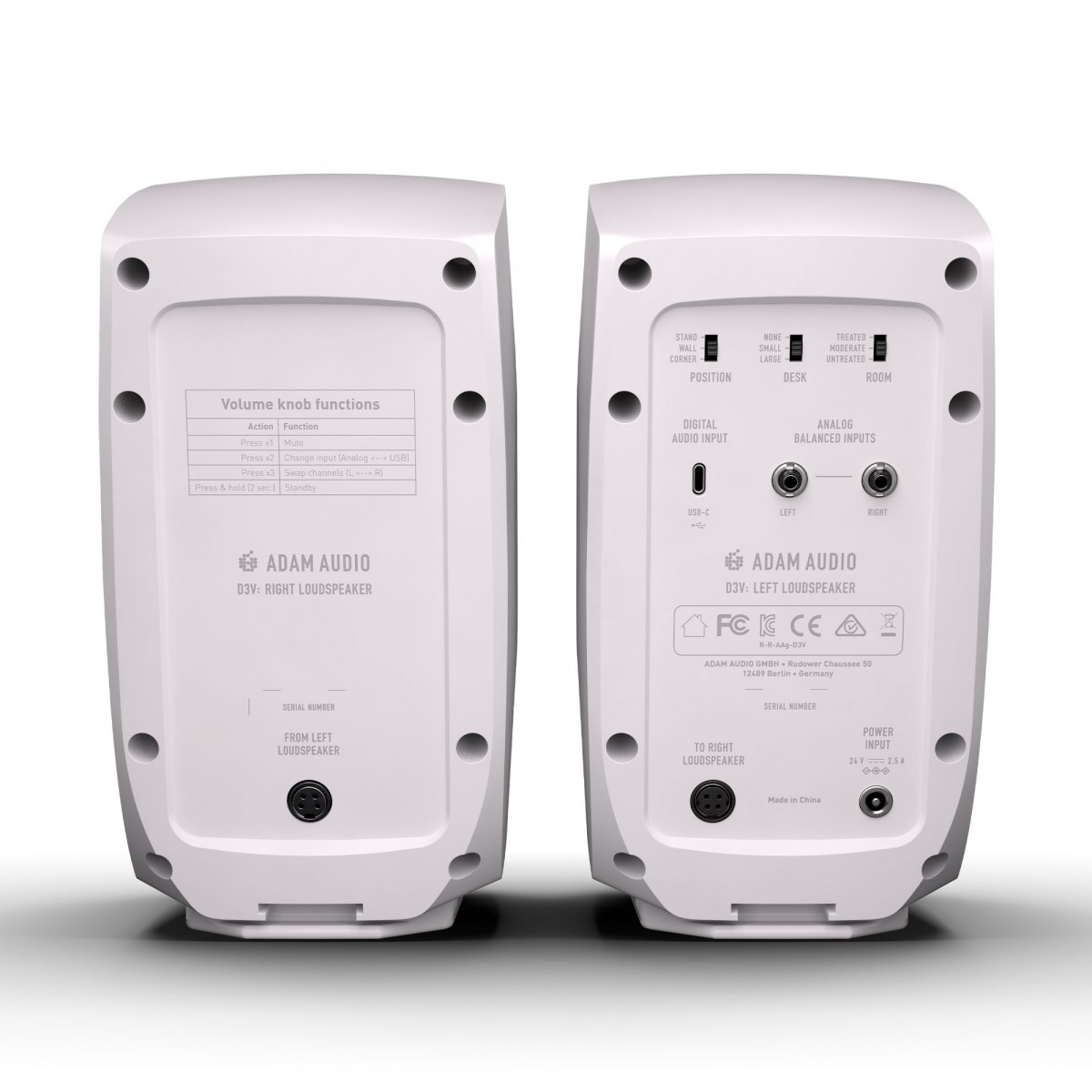

Equipped with a USB-C input and two balanced TRS sockets, D3V offers high-quality digital and analogue connections. Streamlined controls include a multi-function volume knob, intuitive room compensation switches, and a multi-color status indicator. The D3V comes complete with detachable monitor stands as well as in-built threaded mic stand mounting points for perfect positioning in any environment.

Available in black or white editions, the D3V’s finish can be chosen to match your taste and compliment your environment.

Specifications

Frequency Response @ -3 dB

48 – 22.6 kHz

Frequency Response @ -6 dB

45 – 23.2 kHz

Crossover Frequencies

4.0 kHz

Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS)

94 dB SPL

Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak)

97 dB SPL

Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS)

80 dB SPL

Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak)

84 dB SPL

Max peak SPL in full space at 1 m with IEC-weighted noise (full range / 80 Hz bass managed)

98 dB SPL

Dolby DARDT max SPL in full space

103 dB SPL

Dolby DARDT max SPL in full space (bass managed)

106 dB SPL

Audio Connectors

Analog

TRS

Input Impedance

47 kOhm

Max. Input Level

+9 dBu

Digital

USB Type C

Digital Audio Signal

Class-compliant USB 1.1

Headphones output connector

3.5 mm TRS mini-jack

Headphones output impedance

32 Ohm

General data

Display

Front panel multi-color LED

Cabinet Design

Dual passive radiator

Cabinet Material

PC-ABS

Mounting options

Flat on desk or loudspeaker stand (angled 15 degrees upwards on desk using supplied foot), threaded insert (3/8″) on the bottom of the cabinet (may require female 5/8" to male 3/8" adapter for use with standard microphone stand)

Power consumption (max, idle, sleep)

60 W, 5 W, 0.3 W

AC Input Voltage

100 – 240 V, 50/60 Hz

Power Rating

60 W max.

Operating Conditions

-10° C to +45° C (+14° F to +113° F); <70% RH, non-condensing

Weight

3.58 kg total (7 lbs 14 oz total)

Dimensions (Height x Width x Depth)

200 mm (Height with stand: 240 mm) x 115 mm x 150 (7 7/8″” (Height with stand: 9 1/2″”) x 4 1/2″” x 5 7/8″”, 9 1/2″”)”

Length of connection cable

2 metres (78.74 inches)

Warranty

5 years (2 years warranty plus 3 years optional with product registration)

Delivery Contents

D3V primary loudspeaker, D3V secondary loudspeaker, USB-C cable with USB-A adapter, Power cable, Power block, Quick Start Guide
