SPL Phonos DUO
Sound Performance Lab

SPL Phonos DUO

RIAA Phono Preamplifier

Product Code:
Availability:
SPL Phonos DUO
Call for Availability
₹299,705

Call +91 98843 04425 for availability

Analog inputs & outputs; XLR (balanced)
Maximum input & output gain
21.5 dBu
Input impedance
20 kΩ
Output impedance
75 Ω
Frequency range (-3 dB)
10 Hz – 100 kHz
THD +N (0 dBu, 10 Hz – 22 kHz))
0.005 %
Noise (A-weighted)
-96 dBu
Crosstalk (1 kHz)
-70 dB
Common mode rejection (1 kHz)
60 dB
Dynamic range
117 dB

Standard Headphones Output, 6.35 mm (1/4") TRS Jack
Wiring
Spitze = links, Ring = rechts, Schaft = GND
Source impedance
22 Ω
Noise (A-weighted, 600 Ω)
-85 dBu

Internal Linear Power Supply with Toroidal Transformer
Operating voltage for analog audio
+/- 15 V
Operating voltage for relays and LEDs
+ 12 V

Mains Power Supply
Mains voltage (selectable)
230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V
T 315 mA
Fuse for 115 V
T 630 mA
Power consumption
max. 10 W

Dimensions & Weight
W x H x D (width x height incl. feet x depth)
215 x 100 x 220 mm
8.46 x 3.58 x 8.66 inch
Unit weight
2.1 kg
4.63 lbs
Shipping weight (incl. packaging)
4 kg
8.82 lbs

    The SPL Phonos duo expands the established SPL phono preamplifier Phonos with a pair of balanced stereo inputs and outputs. Phonos duo is thus even more versatile. Whether moving magnet (MM) or moving coil (MC) cartridge systems – the SPL VOLTAiR technology and the RIAA filter in the legendary Douglas-Self design form the fundament for an outstanding phono sound.

    MOVING MAGNET AND MOVING COIL
    Moving magnet cartridges generate a voltage by moving a magnet between copper coils. In order to achieve the best possible linearity of the frequency and phase response, the capacitance is modified to adjust the cartridge. Phonos duo offers six different capacities for this adjustment: 12 pF, 47 pF, 100 pF, 150 pF, 220 pF und 330pF.

    The moving coil cartridge is also a small electromagnetic generator. However, the magnets are firmly anchored – and the coils move between the magnets. This concept is exactly the opposite of the moving magnet cartridge. Consequently, it is not the capacitance but the impedance that is the decisive parameter in matching the cartridge. Phonos duo offers six different impedances for this adjustment: 20 ohms, 50 ohms, 100 ohms, 220 ohms, 500 ohms and 1 kohm.

    FREE CHOICE – BALANCED OR UNBALANCED
    Phonos duo offers two pairs of stereo inputs and outputs. A pair of balanced inputs and outputs with XLR inputs and outputs and a pair of unbalanced inputs and outputs with RCA connectors. The INPUT switch on the front of the Phonos duo can be used to switch between the two stereo inputs. The output signal is always present in parallel at both output – regardless of the selected input.

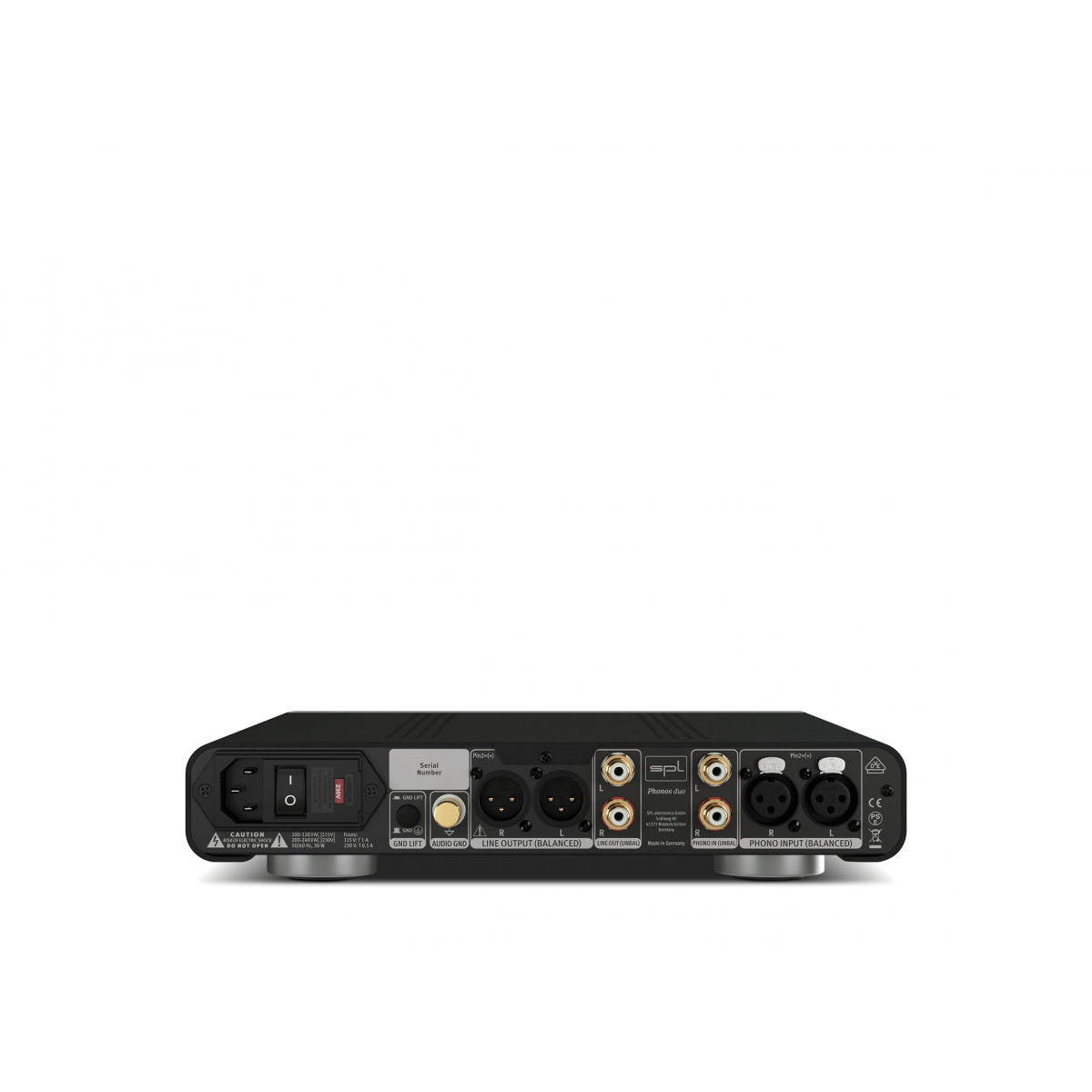

    CONNECTIONS
    Gold-plated RCA sockets are available for connecting the turntable and for outputting to a preamplifier such as the Director Mk2 or the Elector. A ground connection for the turntable is designed as banana plug socket. The ground lead can be either clamped or plugged in. Phonos duo also features a switch on the rear panel labeled GND LIFT. This ground lift function can be used to eliminate ground loops by isolating the internal ground from the housing ground when the switch is pressed.

    PERFECT LEVEL
    The GAIN switch can be used to set the preamplification. There are three values to choose from. In the “Low” position, the amplification for MM systems is +30 dB and for MC systems +50 dB. This is ideal in combination with standard HiFi devices that operate with a reference level of -10 dBV In switch position “Med”, the amplification is increased by 10 dB (MM = +40 dB, MC = +60 dB). If the switch is in the “High” position, the gain is increased by a further 10 dB (MM = +50 dB, MC = +70 dB). This means that the output level is approximately as loud as that of modern DA converters at a reference level of 0 dBfs = 15 dBu.

    The rumbling of the turntable‘s drive mechanism is amplified by the high amplification of the bass range due to RIAA equalization in playback (see RIAA equalization). The Phonos duo offers a switchable subsonic filter to remove this rumble.

    The MONO switch can be used to select whether the stereo input signal should be output as a regular stereo signal or summed to mono (switch in the On position). This is useful, for example, when using a mono system to play mono records.

    VOLTAIR TECHNOLOGY
    The 120V technology is SPL's reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps. In SPL's Professional Fidelity series, this unsurpassed technology is referred to as VOLTAiR technology.

    SPL PHONOS DUO FEATURES:
    Phono preamplifier with balanced stereo input and outputs
    Compatible with moving magnet (MM) or moving coil (MC) cartridge systems
    GAIN switch can be used to set the preamplification between three settings
    Switchable subsonic filter to remove rumble
    MONO switch can be used to select whether the stereo input signal should be output as a regular stereo signal or summed to mono
    120V VOLTAiR reference technology

    SPL Audio Professional Fidelity
