SPL Madison Madi Overview

The Madison MADI Interface by SPL is a MADI interface with 16 inputs and 16 outputs. It supports SPL analog sound on any MADI-equipped digital console, router, or PC MADI card.

With 16 input and 16 output channels in a single rack area, the Madison combines signal conversion with dependable clock and MADI processing. And, as a real SPL device, it is meant to be simple to use, expandable, and, of course, a great-sounding conversion system.

Madison’s I/O equipment simplifies the integration of professional analog gear into bigger multichannel systems. With four popular reference levels, operational sampling rates ranging from 44.1 to 192 kHz, multicore analog I/O, fiber MADI I/O, and word clock I/O, the Madison fits almost anywhere.

Up to four units can be linked to a single MADI port on a digital console, a MADI PC card, or any other professional audio routing system. The MADI port provides near-zero-latency digital transmission of up to 64 I/Os with galvanic shielding. And, because MADI is the developing new studio I/O standard, the Madison interface is appropriate for home and project studios, commercial recording studios, and score stages.

MADI

Broadcast and live professionals have depended on the still-unrivaled MADI for almost two decades; with jitter-free, rock-solid transmission of several audio channels per one cable, as well as low-cost cabling with lengths well exceeding one mile, MADI simply provides unique benefits.

Madison

SPL focuses on analog, and competent converter technology needs a suitable analog foundation. This is where a genuine difference may be produced. The business created an analog audio section on 36V audio rails, with output levels of 24 dB. With its simple operation and flexible extension, the Madison is a great interface for anybody interested in the benefits of the MADI format.

•  16 AD and 16 DA converters in a single rack unit.
•  Analog converters operating on 36V audio rails.
•  Professional output level: +24 dBu.
•  Provides up to 64 I/Os on a single MADI port (optional 4 units).
•  Latency-neutral MADI chaining.
•  Variable speed range of 44.1 to 192 kHz (±10%).
•  SPL clock-shop ensures jitter-free operation.
•  Reliable MADI I/O with minimal conversion latencies.
•  Four configurable reference levels (15/18/22/24 dBu)

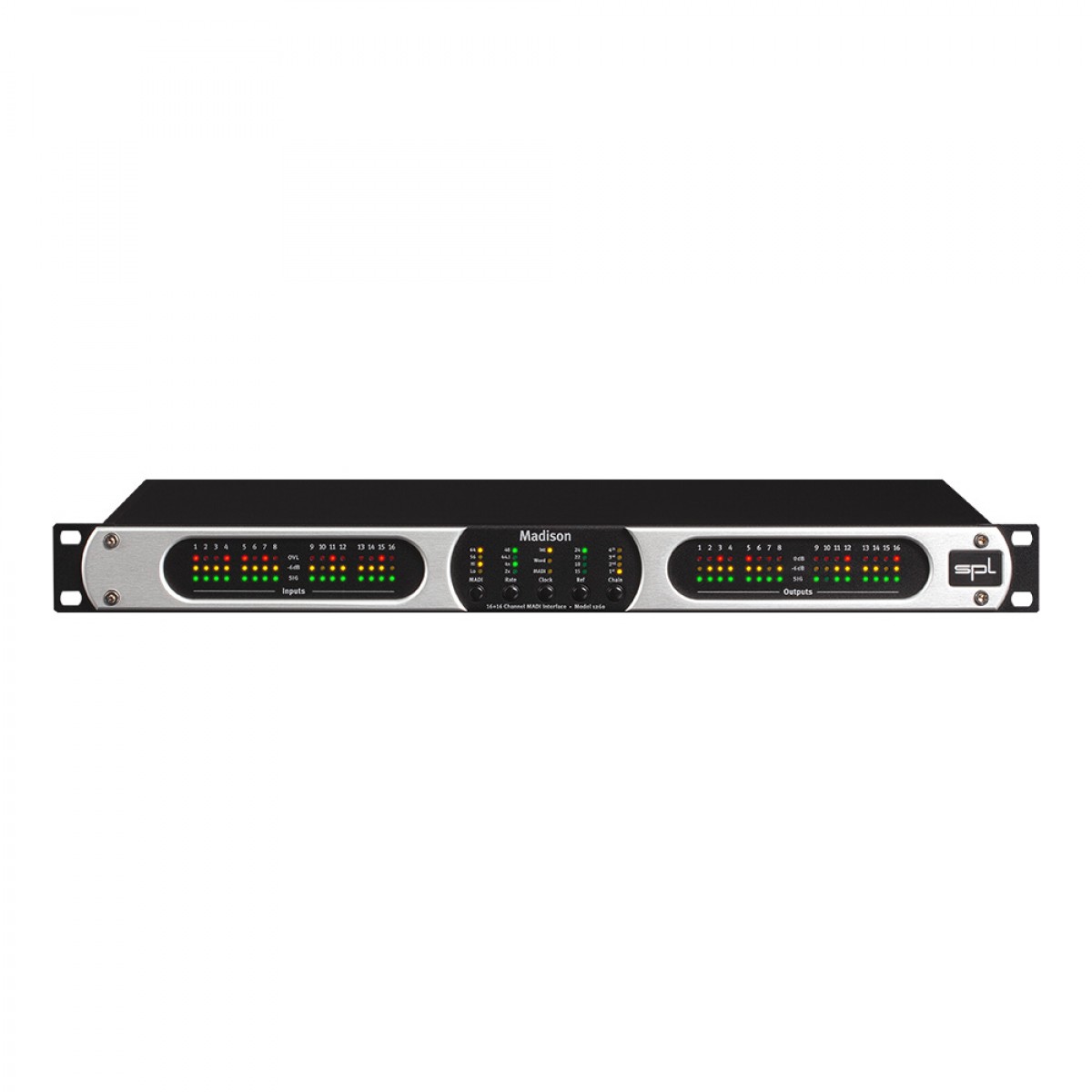

•  Easy front-panel control operation.
•  Distance-readable meters provide unambiguous level status information for any I/O channel.
•  Low-power, fanless design (max. 30W)
•  Optional: redundant power supply.

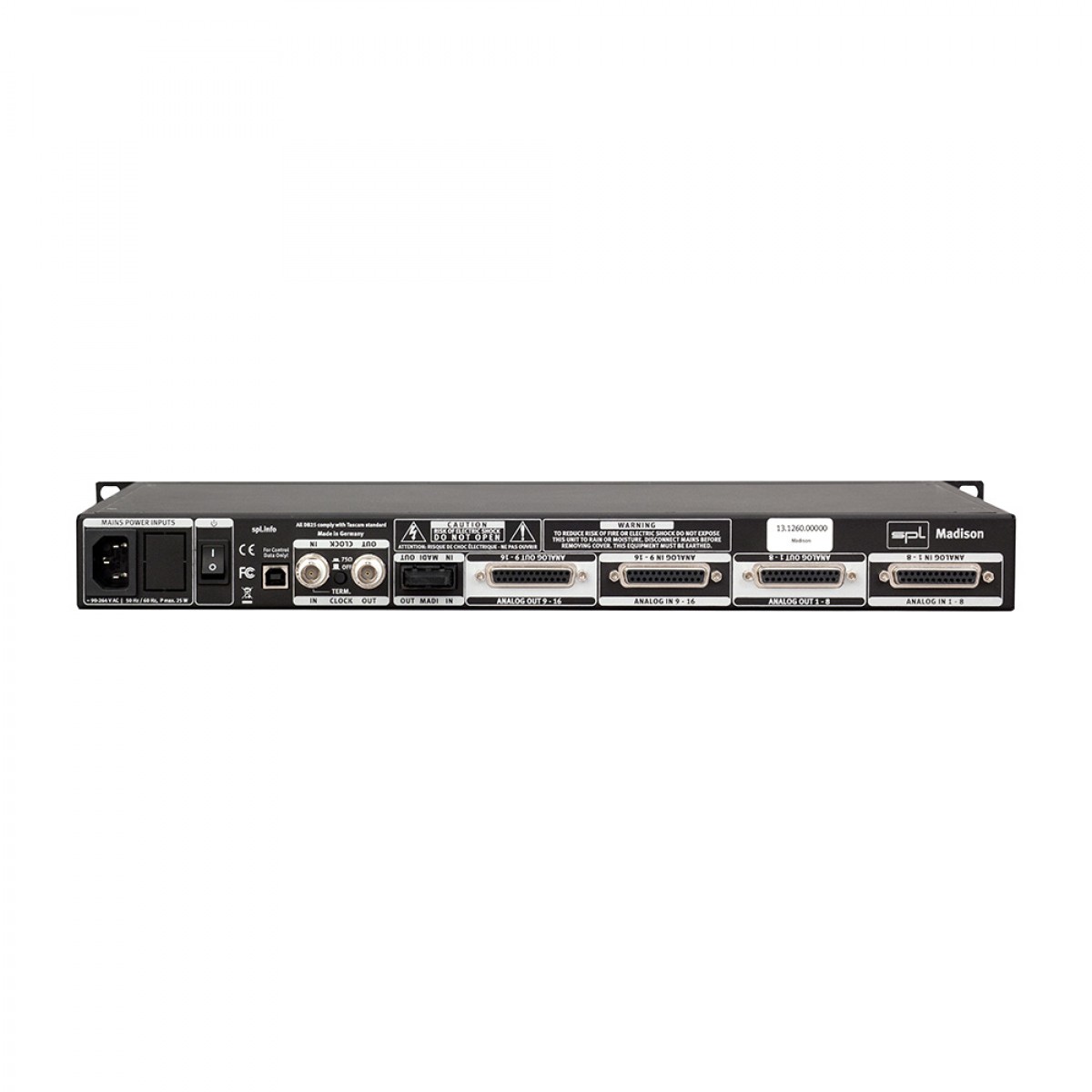

•  Includes four analogue, 8-channel multicore DB25 connections that meet TASCAM industry standards.
• USB 2.0 for upgrades.
• Stunning converter design using 36V analog technology.
