Nord Electro 6 Specification

PERFORMANCE FEATURES

• Three independent sound sections Organ, Piano and Sample Synth that can be used simultaneously as a layer or a split

• 6 Keyboard Split points (C3-F5) with Split Point Crossfade functionality

• Organize/Page mode: Group sets of up to four Programs into Pages, and arrange these using the Organize mode

• 4 Live Slots

• External keyboard feature: Freely assign sound engines to be controlled by an external keyboard, while others are played from the Nord Electro 6.

GLOBAL FEATURES

• Nord Electro 6 HP: 73-key (6 octaves, E-E) Velocity sensitive Hammer Action Portable keyboard

ORGAN SECTION

• C2D B3 Tonewheel, B3 Bass, Vox, Farfisa and 2 Pipe organ models

• User adjustable percussion levels, percussion decays and key click level

• Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa, Chorus/Detune for Pipe organ models )

• 3 Tonewheel modes: select the level of 'vintage' desired

• Dual Organ mode for control of two independent manuals

• Manual Organ mode

• Mount for Half-Moon Switch on Electro 6D 61/73

• Nord Electro 6D 61/73: 9 Physical drawbars

• Nord Electro 6 HP: Digital LED drawbars

PIANO SECTION

• 1 GB memory dedicated to the Nord Piano Library

• Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord

• Each category can contain several different models.

• All pianos can be replaced using the Nord Sound Manager application

• Advanced String Resonance-control (Gen 2)

• Soft Release

• EQ/Filter

• 4 Dynamic Curves

• Stereo pianos and samples can be played back in mono

• 120 Voices polyphony for Piano Library sounds.

SAMPLE SYNTH SECTION

• 512 MB memory dedicated to the Nord Sample Library

• All samples can be replaced using the Nord Sound Manager application

• The Sample Synth section comes shipped with an extensive selection of one hundred samples from the Nord Sample Library

• Attack and Decay/Release control

• 4 levels of dynamic velocity control

• Velocity sensitive low pass filter

• 46 voice polyphony for Sample Library sounds.

EFFECTS SECTION

• All effects in Stereo

Effect 1

• Pan, Tremolo, Wah and Ring Modulator

• Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob

• Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal

Effect 2

• Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe

• Two selectable depths for each effect

Amp Simulations

• Comp/Amp - three amp/speaker simulations, compressor, C2D 122 rotary speaker, Tube Overdrive

• Drive/Compression amount controlled with the Drive knob

• Rotary speed controls - Slow, Fast and Stopped

• Close or Normal microphone placement for 122 Rotary Speaker simulation

• User adjustable rotary treble and bass rotor speeds and acceleration rates

• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Master Effects

• Dedicated Reverb with 3 modes - Room, Stage and Hall - all with optional Bright Mode and Dry/Wet control

• Dedicated Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong

CONNECTIONS

• 2 Audio outputs L & R - ¼', 6,35 mm jacks, unbalanced

• 1 Monitor input - 1/8', 3,5 mm stereo jack

• 1 Headphone output - ¼', 6,35 mm stereo jack

• 1 Control pedal input - ¼', 6,35 mm TRS stereo jack, like Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.

• 1 Sustain pedal input - ¼', 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.

• 1 Rotary Speaker speed switch pedal input - ¼', 6,35 mm jack. Use a momentary pedal or a switch type pedal

• MIDI In, MIDI Out - 5 pin DIN connectors

• USB - type B connector - for transferring sounds and USB MIDI

• IEC C14 power connector

INCLUDED ACCESSORIES

• User Manual

• Power cord

DIMENSIONS

• Nord Electro 6D 61: 900 mm (35.4') x 97 mm (3.8') x 296 mm (11.7')

• Nord Electro 6D 73: 1066 mm (42') x 97 mm (3.8') x  296 mm (11.7')

• Nord Electro 6 HP: 1074 mm (42.3') x 121 mm (4.8') x 344 mm (13.5')

WEIGHT

• Nord Electro 6D 61: 8.1 kg (17.85 lbs)

• Nord Electro 6D 73: 9.2 kg (20.28 lbs)

• Nord Electro 6 HP: 11.4 kg (25.13 lbs)

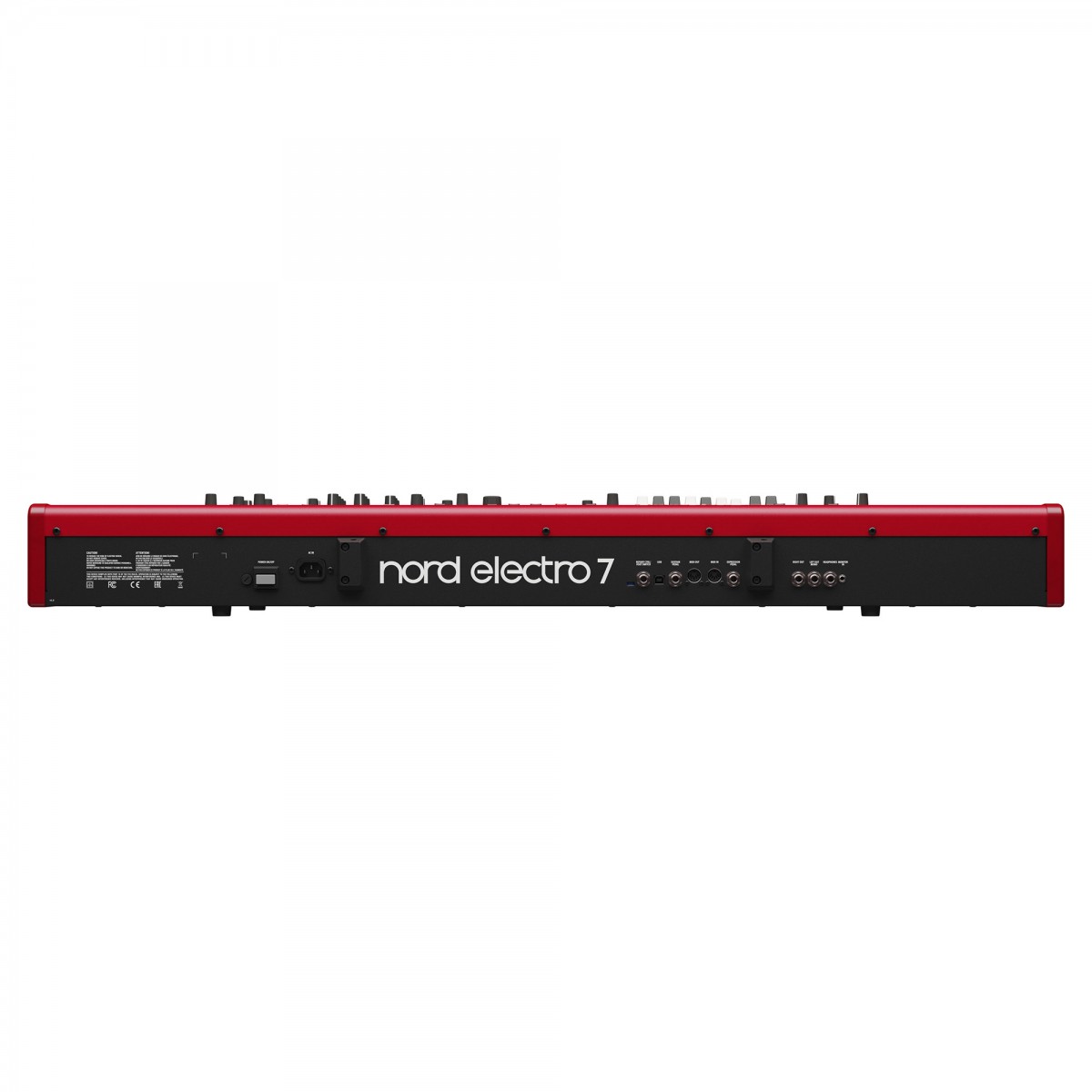

The eagerly anticipated Nord Electro 7 stage piano has dropped, and it delivers everything we’d hoped for — and more. With each successive generation building on the esteemed Electro lineage, its predecessors have all been top sellers at Sweetwater. Now, the Electro 7 further raises the performance bar with updated Piano, Organ, Synth, and Effects sections, physical drawbars with LEDs, and a new color display, live mode, and push encoder that make program selection a snap. The Electro 7 is available in three models with your choice of 61 or 73 semi-weighted waterfall keys or a 73-note hammer-action keybed. Whichever you choose, you’ll be gigging in style with a sleek, lightweight, roadworthy chassis loaded with premium Nord sounds and effects. Packed with powerful features, the Nord Electro 7 is ideal for both live performance and sound design, onstage and in the studio.

Nord's legendary organ section is onboard

Superb sound design, effects manipulation, and playability have remained at the forefront of Nord innovation since the conception of the company's first combo organ. With its Organ section derived from the renowned Nord Organ 3, the Electro 7 benefits from Nord's fastidious attention to detail while adding even more options for deep, authentic sound sculpting, with updated transistor organ models, Rotary Speaker emulation with selectable mic positions, and Slow/Fast and Stop controls. The Electro 7 features independent Vibrato and Chorus control over upper and lower manuals — a must-have feature for the discerning organ-focused keyboardist. And of course, having ready access to physical drawbars gives you the ability to tweak your sound in real time.

Powerful features give you the tools you need

Nord loaded the Electro 7 with tons of features that make gigging and recording easier than ever. A new large color display lets you instantly see your settings, effects, and more. You can also set up splits and layers that combine the organ, piano, and sample sections. The updated Synth section gives you expanded controls for sample playback, Analog and FM synthesis, Mono and Legato modes, Glide and Unison, a Filter with resonance and FM partials, an ADR Envelope for amp and filter, and synth Vibrato. The Piano section now offers Dynamic Compression and Unison modes. The Effects section has also been updated with controls for Ring Modulator, Rate/Amount, and Vibe, as well as a Compressor selectable either globally or per section, a global Reverb with per layer Send, and new amps, including spectacular Suitcase and Brit models.

Nord Electro 7 Features:

• Advanced stage piano with acclaimed Nord Piano, Organ, and Synth sounds
• Available with 61 or 73 semi-weighted waterfall keys or 73-key hammer action
• Organ section based on Nord Organ 3 with updated transistor organ models
• New Rotary Speaker with selectable mic positions and Slow/Fast and Stop controls
• Drawbar Live mode and presets for upper and lower manual
• Physical drawbars with LEDs
• Updated Piano section with Dynamic Compression and Unison
• New Synth section with sample playback, Analog and FM synthesis, Mono/Legato mode, Glide and Unison, Filter with Resonance and FM partials, ADR envelope for amp and filter, and synth Vibrato
• Updated Effects section with Rate and Amount, Ring Modulator, and Vibe controls
• New amp models, including Suitcase and Brit
• Compressor selectable per section or globally
• Global Reverb with per layer Send
• Updated Program section with a new color display, Live Mode, and push encoder for selecting programs and more
• Sleek, lightweight, roadworthy chassis
• Handcrafted in Sweden
