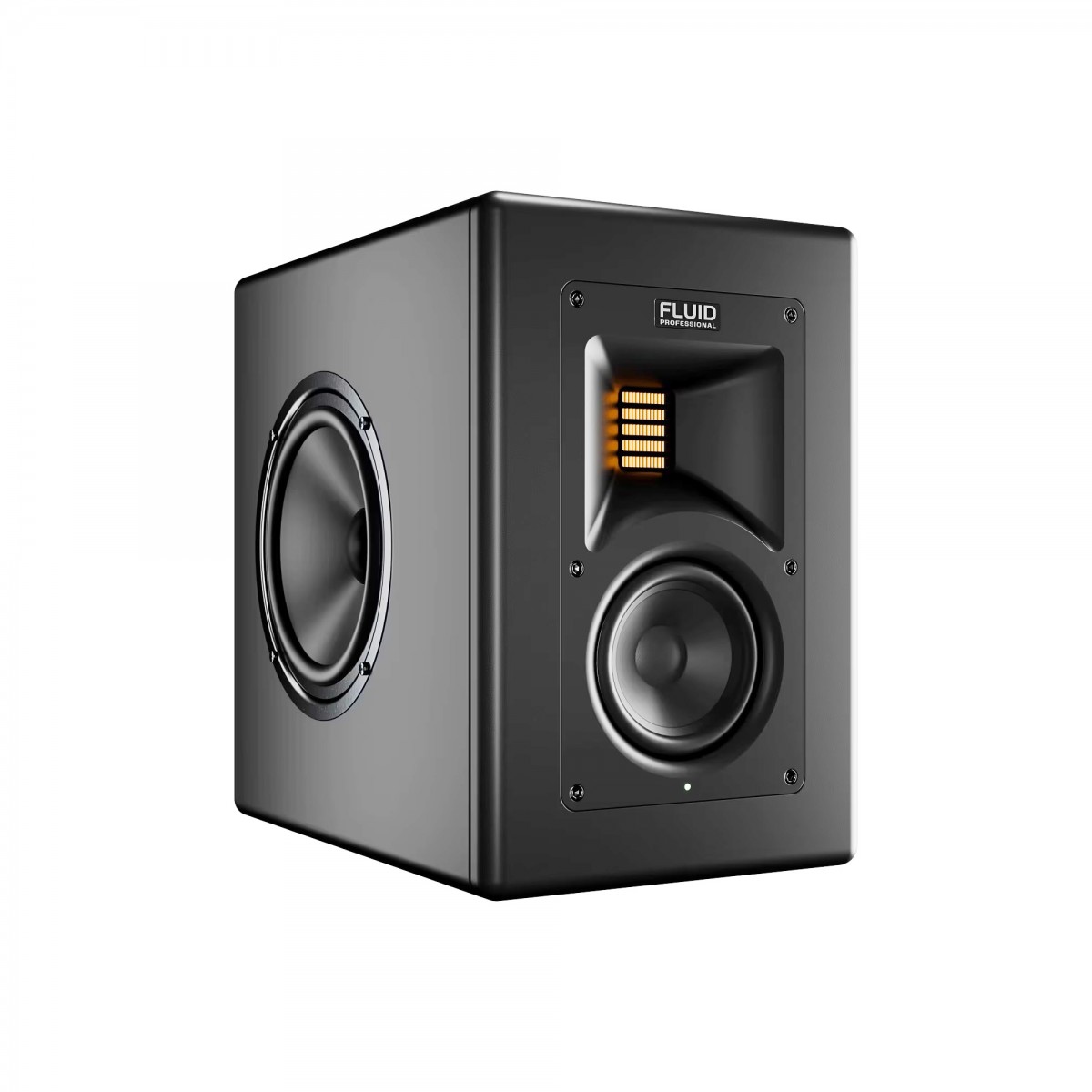

Fluid Professional Image 1 - Active 3-Way Studio Reference Monitor (Each)

Image 1 is a dedicated nearfield/midfield workhorse. Using the latest DSP and Class-D amplification, Fluid Professional has pushed the limits to create stunning results. The Image 1 delivers accurate imaging, extremely flat frequency response, and incredible bass extension with very low distortion.

With support for Sonarworks SoundID Reference calibration import, the room calibration software will be integrated directly into Image 1 studio monitors.

Giving users the ability to create their own calibration profile for their monitor setups to remove unwanted coloration and experience the most accurate studio reference sound for any studio or home environment.

The Image 1 is also a 2 in 1 monitor: a full range mixing and mastering system that can switch into CubeMix mode directly via the DCT Software. CubeMix mode enables engineers to fine-tune low end and midrange levels for consistent playback across “bass-challenged” devices. It also helps refine vocal balance, kick definition, and overall mix translation.

It's future-ready network port expands Image 1’s incredible functionality and provides the ability to upload and run exported room correction files natively at the monitor level, as well as switching between profiles (Image 1 supports loading of 4 different SoundID Reference profiles) and cubemix mode, and more.

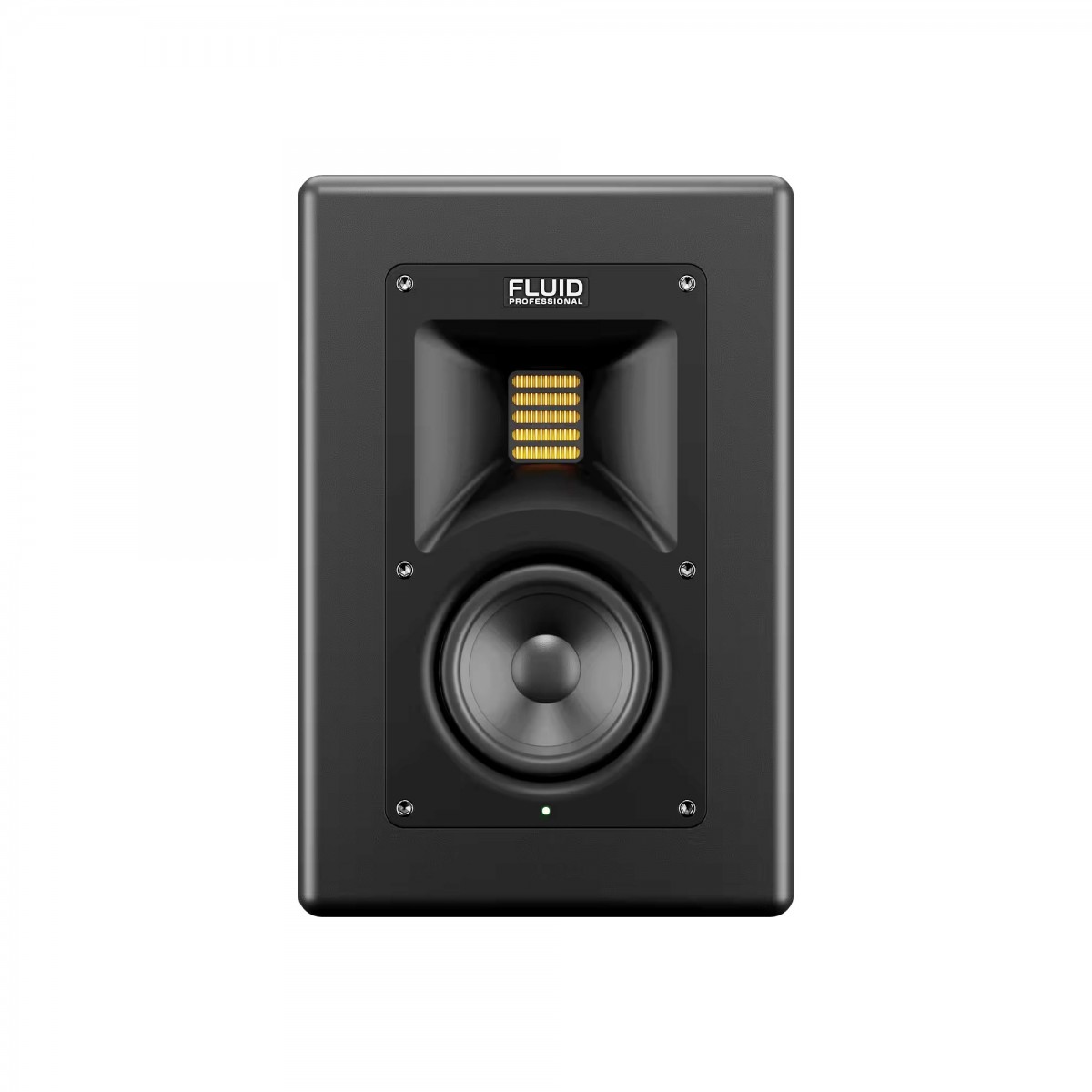

The newly developed AMT tweeter delivers precise, detailed response, expansive headroom, and low distortion, while the 5″ aluminum cone mid-range driver utilizes a shorting ring within its motor structure to substantially reduce harmonic distortion. Focusing the magnetic flux and concentrating it within the voice coil gap reduces the modulation movement of the voice coil, which makes the variation of system inductances more linear as the input current varies. The end result is accuracy so clean; mixing takes on a whole new flow.

The opposed dual 6.5" ultra-long throw woofers are coupled through Fluid’s Vi-bracer (TM) system, which applies controlled outward pressure to cancel reaction forces at the source. This design enhances cabinet stability and delivers an extended, balanced low-frequency response (+/- 3dB 40Hz–27kHz; +/- 1.5dB 80Hz–22kHz). Each woofer is powered by a dedicated 180W Class-D amplifier for precise, distortion-free control.

Driving the entire system is the newly developed Class-D Quad amplifier. Spending the most development time on this important element, the Image 1 amp has extremely low self-noise, very low distortion, improved THD+N performance, improved IMD performance, and lower output impedance. The Image 1’s sealed enclosure design provides a natural, 6db/oct roll off for a more controlled low frequency response. This translates into less likelihood of unwanted interaction with the room, which means these monitors are less sensitive to positioning.

Mixing or mastering on the Image 1 will deliver professional results that are more accurate, and more effortlessly achieved than ever before.

Making it one of the best speaker for music production.

ACCURATE AND TRANSPARENT

Using the Fluid Audio DCT (DSP Configuration Tool) you can push SoundID Reference calibration profiles to the built-in embedded DSP platform onboard the Image 1.

This will compensate for room imperfections that acoustically treated and untreated rooms sometimes have. Using SoundID Reference (v5.6 and newer) and a measuring microphone, you can measure your room, create calibration curves specifically for your environment, and upload them directly onto the Image 1 with the DCT tool. The Image 1 supports up to 4 different profiles. As an example: Flat target, Dolby Atmos Music, Custom Target, as well as Translation Check. All of these can be loaded as different profiles and switched between using the DCT tool running on Windows or macOS. (Network cable has to be connected to both units. You can also enable and disable cubemix mode using the DCT tool (which will not be affected by the calibration profiles).

COMPACT ALL IN ONE

Fluid Audio has ingeniously incorporated precision accuracy and controlled directivity. Impressively, this system maintains an extended bass response down to -3dB @40Hz (in chamber), ensuring a comprehensive audio experience. Image 1 stands as a testament to uncompromising audio quality, catering to the discerning preferences of recording engineers and audio enthusiasts alike.

In essence, Fluid Audio’s Image 1 offers a complete audio solution, blending pinpoint accuracy, directional control, and a diverse range of input options, all within a space-saving design. Its exceptional bass performance makes it a preferred choice for those seeking exceptional sound quality in a compact format.

DSP AND CONVERTERS

The Image 1 DSP platform features a carefully engineered signal path built around premium AKM AD/DA converters and optimized analog circuitry. This architecture maintains signal integrity and achieves a 115 dBA system signal-to-noise ratio, preserving fine detail and dynamic range.

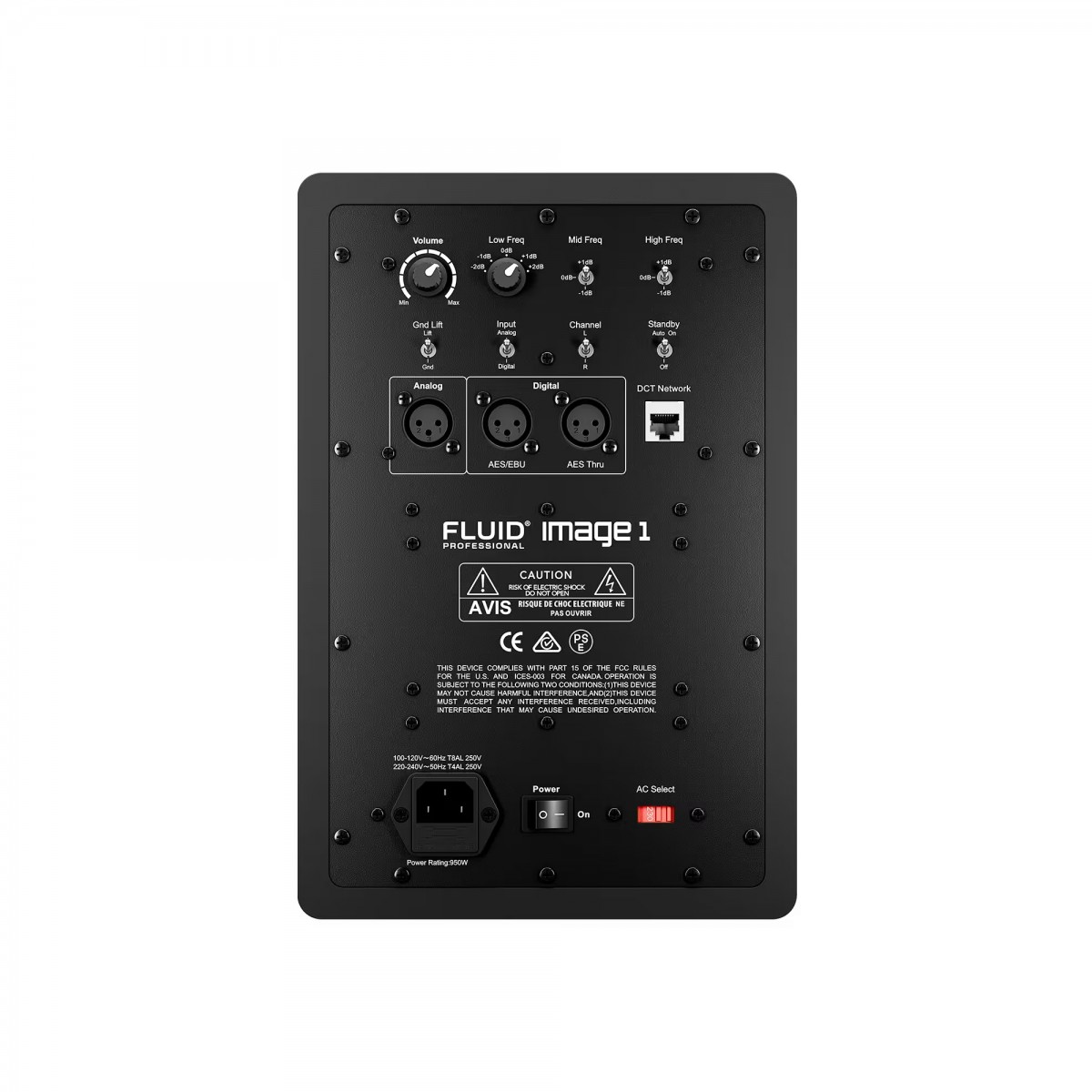

The in-house developed digital signal processing system introduces a range of features that greatly enhance the studio experience. In addition to the analog XLR input, there is an AES digital in and thru enabling the possibility of daisy chaining two Image 1 speakers. Moreover, the digital connection bypasses interface conversions, effectively reducing unwanted artifacts.

Key Features

• Active Class-D Quad Amplifier
• 475W Total Amplification
• Dual 6.5" Ultralong-Throw Woofers
• 4" Aluminum Cone Midrange Driver
• 1.1 x 1.7" AMT Tweeter
• Analog XLR Balanced Input
• Digital XLR AES/EBU In/Thru
• Footswitch-Activated Mixcube Mode
• Network RJ45 Connector for DCT
