Vanguard V1S
Vanguard V1S
₹72,653

Vanguard V1S

   0 reviews
Product Code:
Availability:
Vanguard V1S
Call for Availability
₹72,653

Call 044-2819 3607 for availability

Transducer Type
Condenser
Capsule Size (Small-Diaphragm)
0.87″/22mm
Diaphragm Size (Small-Diaphragm)
0.78″ / 16mm
Capsule Diaphragm Thickness (Small-Diaphragm)
4µm
Electronics Type
Solid-state, transformer-balanced output
Output Impedance
200Ω
Max SPL
 >=136dB (0.5% THD @ 1000Hz)
Frequency Response
20Hz-20kHz
Equivalent Noise Level
<15dbA
Output Connector
Male XLR 3-pin, gold-plated
Finish
 Polished nickel trim / High-gloss Pinot Noir
Voltage Requirement
Phantom Power (+48V ideal)

Stereo Multi-Capsule Pencil Condenser Kit

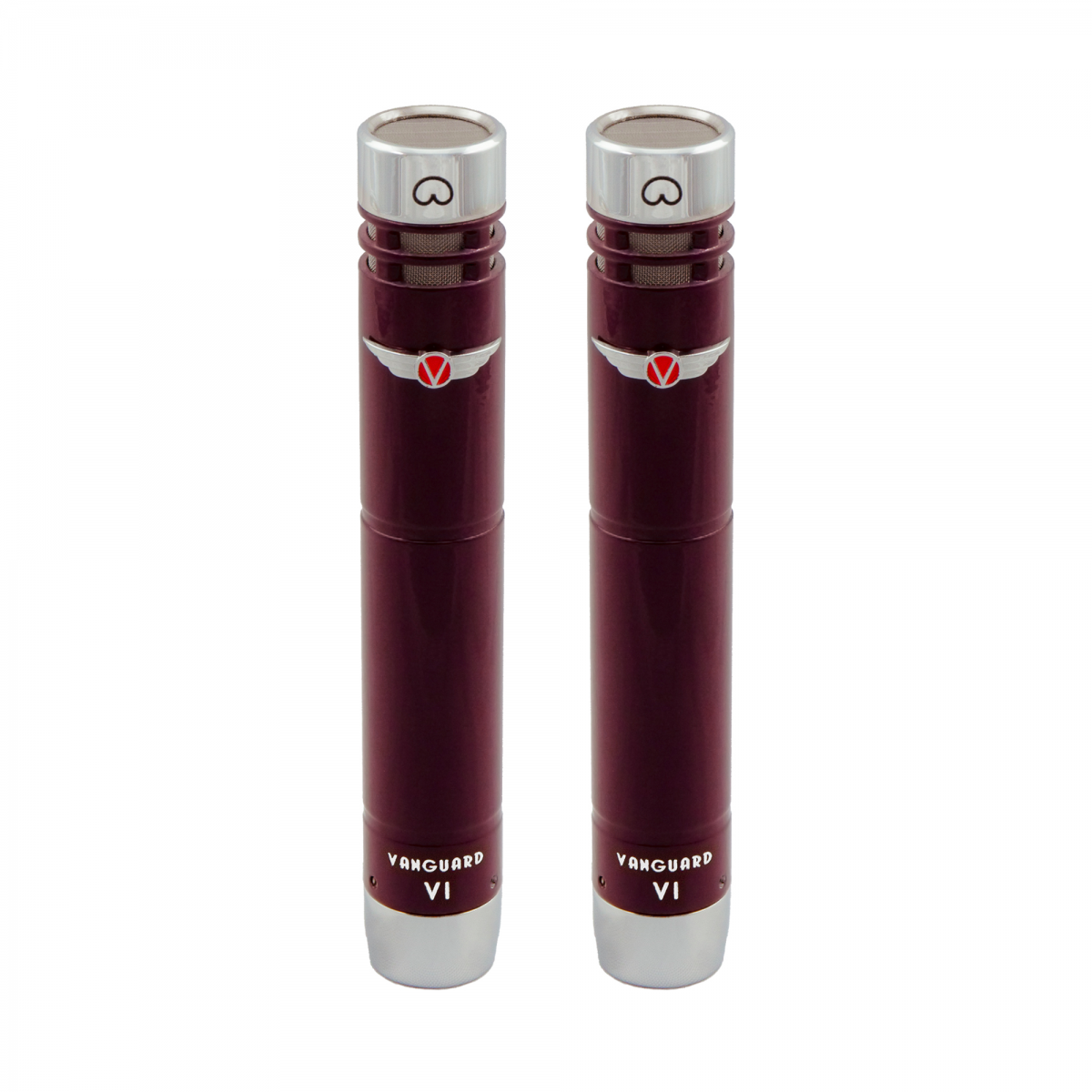

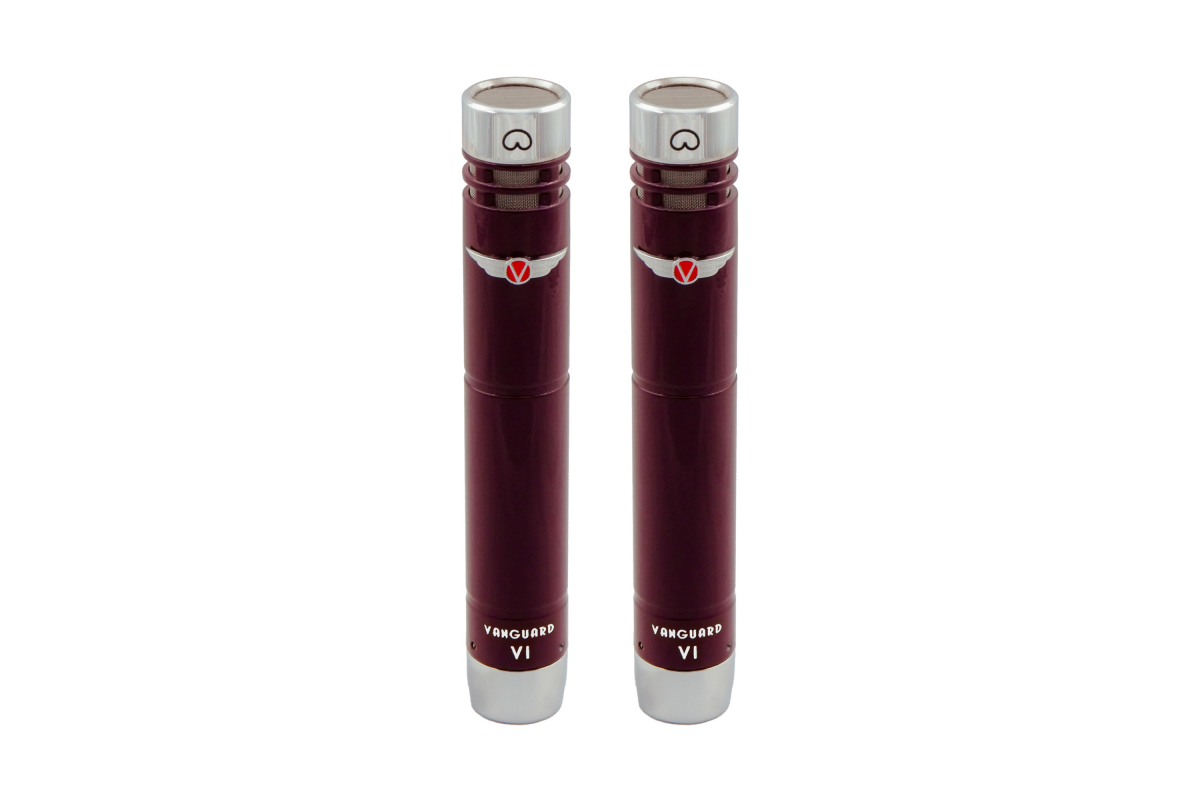

The Vanguard V1S is a matched pair of multi-capsule FET pencil condenser microphones.Lovingly crafted by experts, it is designed to be a versatile, reliable, professional tool for any recording engineer, studio, producer, or artist. With a “straight-wire” circuit design, premium cryogenically-treated FET componentry, an unparalleled selection of capsules, and a true heavy-duty shockmount, the V1S will be your new “go-to” set of pencil condensers.

Two Vanguard V1 Microphones – packed with high-end componentry including an ultra-quality precision-biased JFET, a custom-wound transformer, premium capacitors, and cryogenic treatment throughout. A “straight-wire” design philosophy means there’s only four components between the capsule and the output.

Eight 22mm Capsules – these interchangeable capsules give you unmatched flexibility – two each of cardioid, wide cardioid, hypercardioid, and omnidirectional patterns. Ultra-sensitive 4-micron diaphragms, an anti-comb-filtering front design, and precision-machined backplates give wide consistency across each capsule.

Two VSSM Shockmounts – the best pencil shockmount in the ‘verse. Heavy-duty cast zinc partners with high-impact ABS to create a shockmount that stays where it’s supposed to. Aerospace-grade suspension rings keep the rumble out (no hair scrunchies here!), and a windowed design allows you to easily access switches without changing the your mic placement.

Stereo Microphone Bar – Easily set up X/Y, ORTF, or other stereo mic’ing configurations.

Pinewood Storage Case – because your microphones should stay safe in luxury. We’ve carved individual capsule pockets into a block of solid pine, and custom-cut foam for your mics to stay cozy and secure…whether they’re on the road or in your studio.


Performance

We designed the V1S with the character and versatility of iconic pencil condensers in mind, while also utilizing modern technology & design to meet the demands of today’s recording professionals.

The V1S kit was created to be your most flexible and adaptable microphone system. Eight small capsules (2 of each pattern) allow tonal variety on any number of sources, but we found them to be exceptionally well-suited for close-to-medium-range mic’ing of acoustic guitar, percussion, piano, and stringed instruments. (The wide cardioid capsule in particular deserves special mention here as our favorite, but each capsule has sources and situations in which it excels.)

After hundreds of hours of listening and testing exhaustive design variations with world-class engineers, we can confidently say that this microphone will exceed the performance of other pencil condenser microphones in its price range, and rival or exceed the performance of microphones costing several times more.


Capsule & Electronics

  • Eight small-diaphragm 22mm capsules – cardioid, hypercardioid, omnidirectional, wide cardioid (pairs)
  • Transformer-balanced solid-state circuit with premium-grade over-spec circutiry
  • Ultra low-noise high-quality hand-biased JFET and other premium-grade components
  • Deep-cycle cryogenic treatment of critical signal & power path components
  • Transformer-balanced output – custom-wound humbucking dual-bobbin transformer
  • Works via 48V phantom power

Construction
  • Heavy-duty brass, steel, and zinc construction
  • Each V1 comes with its own laser-engraved serial number
  • Over-spec componentry
  • Deep-gloss Pinot Noir finish
  • Polished nickel trim
  • Precision-cast Vanguard badge
  • Final Assembly & 100% Quality Control in California, USA
  • 5-Year Warranty

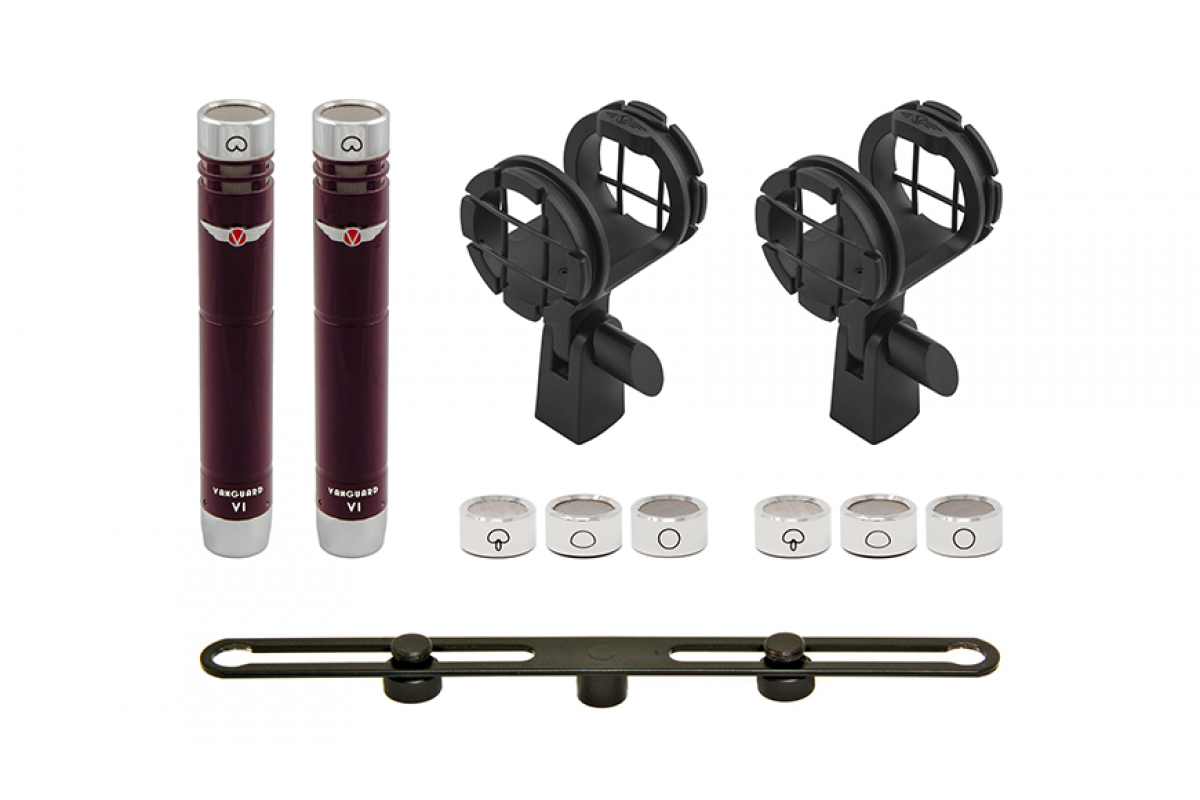

Included Accessories
  • 22mm removable capsule – Cardioid (pair)
  • 22mm removable capsule – Hypercardioid (pair)
  • 22mm removable capsule – Omnidirectional (pair)
  • 22mm removable capsule – Wide Cardioid (pair)
  • VSSM small shockmount (pair)
  • Padded pinewood microphone storage box
  • Stereo microphone bar
